Technical Walkthrough

How It Works

From first sensor mount to first alert — typically under 10 days. No machine downtime required for installation.

5–7d
Baseline learning period per machine

Four-Step Process

Install to insight in under 10 days

01
Mount & Connect

Clip-on accelerometers attach to bearing housings without removing guards or stopping machines. Current clamps go around motor leads. Thermocouples clip or bolt to housings. All sensor types use standard DIN rail DAQ hardware or connect to your existing OPC-UA historian. Target: one shift to instrument 2–4 machines.

Hardware used
  • ICP accelerometers (4–20 mA output)
  • Piezoelectric vibration sensors
  • Clamp-on current transformers
  • Type K/J thermocouples via DAQ
02
Ingest & Baseline

Gearcadence connects to your sensor streams via OPC-UA, Modbus TCP, or MQTT — whichever is already running. Over 5–7 days, the system learns normal operating signatures for each machine at each RPM range and load condition. Baseline captures: vibration spectrum envelope, thermal steady-state, current draw at nominal load.

Protocols supported
  • OPC-UA (DA + HA profiles)
  • Modbus TCP/RTU
  • MQTT broker
  • REST/JSON API
03
Detect

After baseline, continuous ML inference compares incoming sensor data against the learned normal envelope. Bearing defect frequencies (BPFO, BPFI, BSF, FTF), gear mesh frequency sidebands, and envelope-demodulated impulse energy are evaluated on every data window. No alarm setpoints to configure — the model flags what deviates.

Detection signatures
  • Bearing outer/inner race defects
  • Gear tooth pitting, GMF sidebands
  • Imbalance and misalignment
  • Motor winding degradation
04
Act

Prioritised alerts appear in the Gearcadence dashboard and route to your maintenance team via webhook, SAP PM notification, email, or SMS. Each alert includes: fault type, affected component, confidence level, estimated time-to-failure range, and recommended action. Maintenance planners can acknowledge, snooze, or escalate in the dashboard.

Alert outputs
  • Web dashboard (plant + per-machine)
  • CMMS work order via webhook
  • SAP PM notification via RFC
  • Email + SMS dispatch

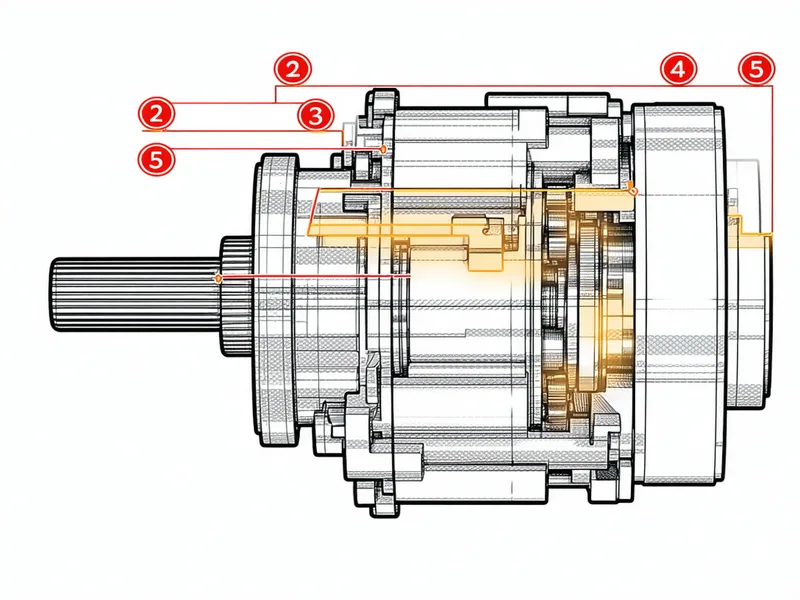

Diagram showing accelerometer and sensor placement positions on an industrial motor and gearbox assembly

What you need before you start

Sensor hardware (spec sheet on request — we can also supply ICP accelerometer kits and current clamps for the pilot)
Network segment with outbound HTTPS — no inbound ports required. Air-gapped deployment available on request.
Equipment nameplate data: manufacturer, model number, rated RPM range, number of gear teeth or gearbox ratio if applicable
1-hour plant walk with Lukas or a team engineer — to confirm sensor placement, check existing OPC-UA or Modbus access, and scope the pilot machines

We don't need your CMMS credentials or ERP access to deploy the monitoring layer. Work order output integration is configured after the pilot phase, not before it.

Equipment Coverage

Equipment classes with proven detection signatures

Rotating machinery (motors, fans, pumps)
CNC machine tools (spindles, servo axes)
Stamping & forming presses
Conveyor & material handling systems
Injection moulding machines
Gearboxes & reducers

Talk to an engineer about your equipment.

Lukas or a team engineer will walk your floor specs with you before you commit to a pilot.
